Keyguards
Tobii Dynavox Keyguards
Each Keyguard is provided in clear Perspex but represented here in the guide in grey so you can see which items are exposed and which items are covered by the keyguard.

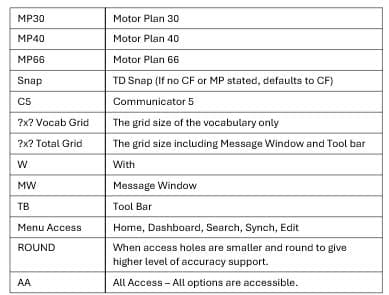

Keyguard Legend
The following table explains the key search terms with Tobii Dynavox keyguard names to help identify their use.
Example:
| Keyguard example | Keyguard TD I-13 / I-13, Snap, 4X4 Voc. Grid/5X5 Tot. Grid W/AA (part number 12007203) |
| Device | TD I-13/ I-13 |
| Software name | TD Snap Core First |
| For Vocab | 4×4 |
| Total Grid Size | 5×5 |
| With AA | Can Access vocab, message window and Top Bar/Menu for editing |
TD Snap Keyguards Product Numbers
Category |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
|---|---|---|---|---|---|---|---|
Blank |
1000741 | 1000560 | 1000804 | 1000944 | 13000517 | 12007127 | 12007132 |
Grid Only |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, 1×2 Voc. Grid Only | 1000864 | 1000823 | 1000904 | 1000987 | 1000001 | 12007187 | 12007220 |
| TD Snap, 2×2 Voc. Grid Only | 1000865 | 1000824 | 1000905 | 1000988 | 1000002 | 12007188 | 12007221 |
| TD Snap, 2×3 Voc. Grid Only | 1000866 | 1000825 | 1000906 | 1000989 | 1000003 | 12007189 | 12007222 |
Menu Access |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, 1×2 Voc. Grid Only, w/ Menu Access | 1000867 | 1000826 | 1000907 | 1000990 | 1000004 | 12007198 | 12007231 |
| TD Snap, 2×2 Voc. Grid Only, w/ Menu Access | 1000868 | 1000827 | 1000908 | 1000991 | 1000005 | 12007188 | 12007232 |
| TD Snap, 2×3 Voc. Grid Only, w/ Menu Access | 1000869 | 1000828 | 1000909 | 1000993 | 1000006 | 12007200 | 12007233 |
With Message window and Tool bar access |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, 3×3 Voc. Grid/4×4 Tot. Grid w/MW&TB | 1000870 | 1000829 | 1000910 | 1000994 | 1000007 | 12007190 | 12007223 |
| TD Snap, 3×4 Voc. Grid/4×5 Tot. Grid w/MW&TB | 1000871 | 1000830 | 1000911 | 1000995 | 1000008 | 12007191 | 12007224 |
| TD Snap, 4×4 Voc. Grid/5×5 Tot. Grid w/MW&TB | 1000872 | 1000831 | 1000912 | 1000996 | 1000009 | 12007192 | 12007225 |
| TD Snap, 5×5 Voc. Grid/6×6 Tot. Grid w/MW&TB | 1000873 | 1000832 | 1000913 | 1000997 | 1000010 | 12007193 | 12007226 |
| TD Snap, 6×6 Voc. Grid/7×7 Tot. Grid w/MW&TB | 1000874 | 1000833 | 1000914 | 1000998 | 1000011 | 12007194 | 12007227 |
| TD Snap, 7×7 Voc. Grid/8×8 Tot. Grid w/MW&TB | 1000875 | 1000834 | 1000915 | 1000999 | 1000012 | 12007195 | 12007228 |
| TD Snap, 7×9 Voc. Grid/8×10 w/MW&TB | — | 1000835 | 1000916 | 1001000 | 1000013 | 12007196 | 12007229 |
| TD Snap, 8×10 Voc. Grid/9×11 w/MW&TB | — | 1000836 | 1000917 | 1001001 | 1000014 | 12007197 | 12007230 |
With All Access |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, 3×3 Voc. Grid/4×4 Tot. Grid w/AA | 1000878 | 1000837 | 1000918 | 1001002 | 1000015 | 12007201 | 12007234 |
| TD Snap, 3×4 Voc. Grid/4×5 Tot. Grid w/AA | 1000879 | 1000838 | 1000919 | 1001003 | 1000016 | 12007202 | 12007235 |
| TD Snap, 4×4 Voc. Grid/5×5 Tot. Grid w/AA | 1000880 | 1000839 | 1000920 | 1001004 | 1000017 | 12007203 | 12007236 |
| TD Snap, 5×5 Voc. Grid/6×6 Tot. Grid w/AA | 1000881 | 1000840 | 1000921 | 1001005 | 1000018 | 1000249 | 12007237 |
| TD Snap, 6×6 Voc. Grid/7×7 Tot. Grid w/AA | 1000882 | 1000841 | 1000922 | 1001006 | 1000019 | 12007205 | 12007238 |
| TD Snap, 7×7 Voc. Grid/8×8 Tot. Grid w/AA | 1000883 | 1000842 | 1000923 | 1001007 | 1000020 | 12007206 | 12007239 |
| TD Snap, 7×9 Voc. Grid/8×10 Tot. Grid w/AA | — | 1000843 | 1000924 | 1001008 | 1000021 | 12007207 | 12007240 |
| TD Snap, 8×10 Voc. Grid/9×11 Tot. Grid w/AA | — | 1000844 | 1000925 | 1001009 | 1000022 | 12007208 | 12007241 |
Text Keyboard |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, Text Keyboard, 7×10/8×11 w/AA | — | 1000845 | 1000926 | 1001010 | 1000023 | — | — |
| TD Snap, Text Keyboard, DE, 7×10/8×11 w/AA | — | 1000846 | 1000927 | 1001014 | — | — | |
Motor Plan 30 |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, MP30, 5×5 Round Voc. Grid (6×6 w/AA) | 1000900 | 1000859 | 1000940 | 1001034 | 1000252 | 1000249 | 1000250 |
| TD Snap, MP30, 5×5 Voc. Grid (6×6 w/MW&TB) | 1000873 | 1000832 | 1000913 | 1000997 | 1000010 | 12007193 | 12007226 |
| TD Snap MP30, 5×5 Voc. Grid (6X6 w/AA) | 1000881 | 1000840 | 1000921 | 1001005 | 1000018 | 1000249 | 12007237 |
Motor Plan 40 |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, MP40, 5×7 Round Voc. Grid/6×8 Tot. Grid w/AA | 1000903 | 1000862 | 1000943 | 1001037 | 1001037 | — | — |
| TD Snap, MP40, 5×7 Voc. Grid/6×8 Tot. Grid w/MW&TB | 1000901 | 1000860 | 1000941 | 1001035 | 1000782 | — | — |
| TD Snap, MP40, 5×7 Voc. Grid/6×8 Tot. Grid w/AA | 1000902 | 1000861 | 1000942 | 1001036 | 1000783 | — | — |
Motor Plan 66 |
|||||||
| TD Snap, MP66 (6×10, 7×11 AA) | — | 1000856 | 1000937 | 1001031 | 1000237 | 1000240 | 1000243 |
| TD Snap, MP66 (6×10, 7×11 w/MW&TB) | — | 1000857 | 1000938 | 1001032 | 1000238 | 1000241 | 1000244 |
Aphasia |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap Aphasia, 4×3/5×4 w/AA | 1000890 | 1000849 | 1000930 | 1001024 | 1000027 | 12008988 | — |
| TD Snap, Aphasia, 6×5/7×6 w/AA | 1000891 | 1000850 | 1000931 | 1001025 | 1000028 | 12008526 | — |
PODD |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, PODD 15, w/Menu Access | 1000888 | 1000847 | 1000928 | 1001017 | 1000025 | 13000085 | 13000083 |
| TD Snap, PODD 60, w/Menu Access | — | 1000848 | 1000929 | 1001018 | 1000026 | 13000086 | 13000084 |
TD Snap Express |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, Express, 3×5 Voc. Grid 4×6 Tot. Grid w/AA | 1001204 | 1001195 | 1001210 | 1001189 | 1001186 | 1001192 | 1001197 |
| Snap, Express, 3×5 Voc. Grid 4×6 Tot. Grid w/MW&TB | 1001202 | 1001208 | 1001211 | 1001190 | 1001187 | 1001193 | 1001196 |
| Snap, Express, 3×5 Round Voc. Grid 4×6 Tot. Grid w/AA | 1001206 | 1001209 | 1001212 | 1001191 | 1001188 | 1001194 | 1001195 |
Round |
TD Navio Mini |
TD Navio Midi |
TD Navio Maxi |
TD I-110(2) |
TD I-110 (1) |
TD I-13 |
TD I-16 |
| TD Snap, 2×3 Round, w/Menu Access | 1000892 | 1000851 | 1000932 | 1001026 | 1000029 | — | — |
| TD Snap, 3×3 Round, Grid Only w/Menu Access | 1000893 | 1000852 | 1000933 | 1001027 | 1000030 | — | — |
| TD Snap, 3×3 Round, w/AA, 4×4 Tot. Grid | 1000894 | 1000853 | 1000934 | 1001028 | 1000031 | — | — |
| TD Snap, 3×4 Round, w/AA, 4×5 Tot. Grid | 1000895 | 1000854 | 1000935 | 1001029 | 1000032 | — | — |
| TD Snap, 4×4 Round, w/AA, 5×5 Tot. Grid | 1000896 | 1000855 | 1000936 | 1001030 | 1000033 | — | — |
| TD Snap, MP30, 5×5 Round Voc. Grid (6×6 w/AA) | 1000900 | 1000859 | 1000940 | 1001034 | 1000252 | 1000249 | 1000250 |
| TD Snap, MP40, 5×7 Round Voc. Grid/6×8 Tot. Grid w/AA | 1000903 | 1000862 | 1000943 | 1001037 | 1001037 | — | — |
| TD Snap, MP66 Round (6×10, 7×11 AA) | 1000899 | 1000858 | 1000939 | 1001033 | 1000239 | 1000242 | 1000245 |
| Snap, Express, 3×5 Round Voc. Grid 4×6 Tot. Grid w/AA | 1001206 | 1001209 | 1001212 | 1001191 | 1001188 | 1001194 | 1001195 |
“
TD Snap keyguard internal layouts:
Grid Only:

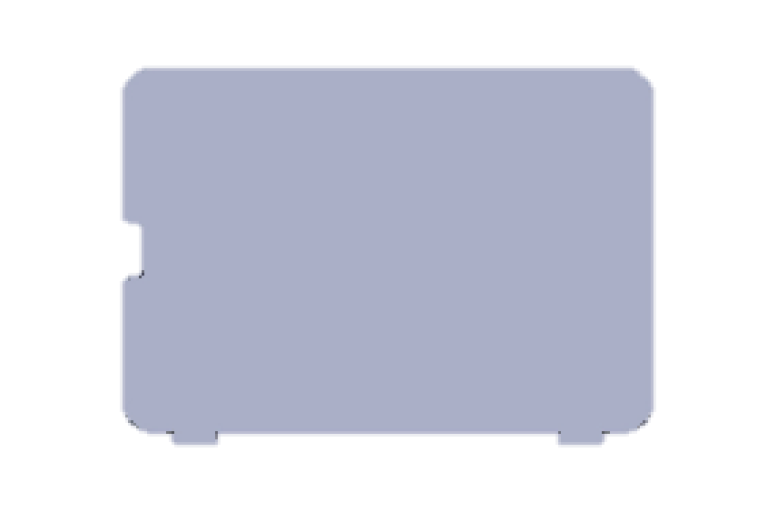

Blank
TD Snap, 1×2 Voc. Grid Only
TD Snap, 2×2 Voc. Grid Only
TD Snap, 1×2 Voc. Grid Only, w/ Menu Access
TD Snap, 2×2 Voc. Grid Only, w/ Menu Access

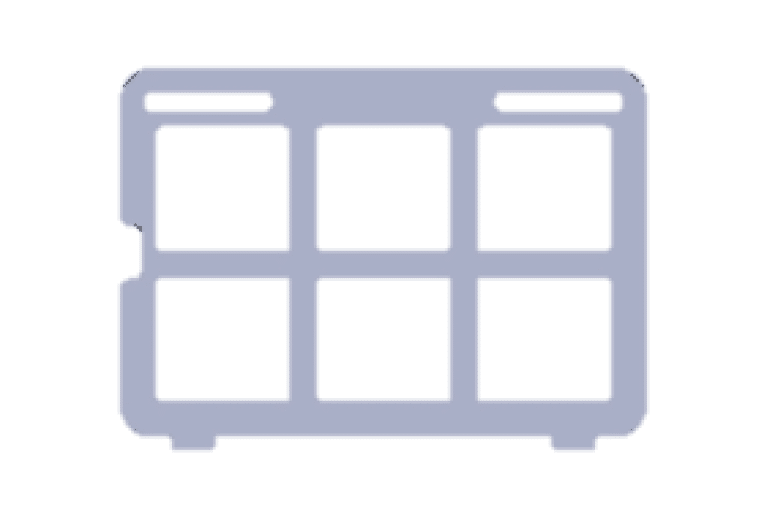

TD Snap, 2×3 Voc. Grid Only, w/ Menu Access
With Message Window and Tool Bar Access
TD Snap, 3×3 Voc. Grid/ 4×4 Tot. Grid w/MW&TB

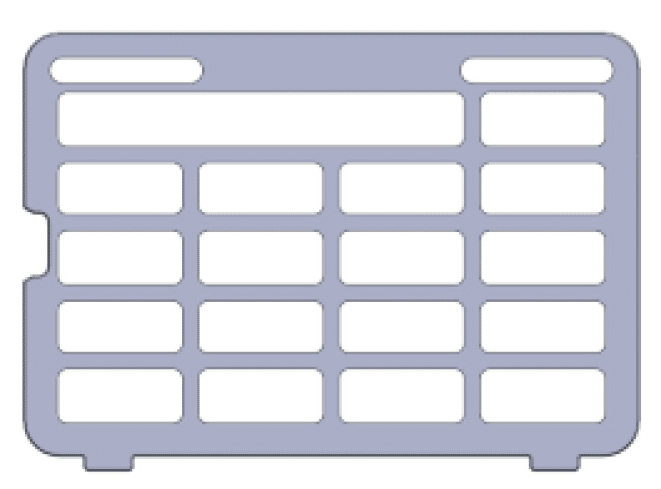

TD Snap, 3×4 Voc. Grid/ 4×5 Tot. Grid w/MW&TB
TD Snap, 5×5 Voc. Grid/ 6×6 Tot. Grid w/MW&TB
TD Snap, 6×6 Voc. Grid/ 7×7 Tot. Grid w/MW&TB
TD Snap, 7×7 Voc. Grid/ 8×8 Tot. Grid w/MW&TB
TD Snap, 7×9 Voc. Grid/ 8×10 w/MW&TB
TD Snap, 8×10 Voc. Grid/ 9×11 w/MW&TB
TD Snap, Express, 3×5 Voc. Grid 4×6 Tot. Grid w/MW&TB
With Message Window and All Access
TD Snap, 3×3 Voc. Grid/4×4 Tot. Grid w/AA
TD Snap, 3×4 Voc. Grid/4×5 Tot. Grid w/AA
TD Snap, 4×4 Voc. Grid/5×5 Tot. Grid w/AA
TD Snap, 5×5 Voc. Grid/6×6 Tot. Grid w/AA
TD Snap, 6×6 Voc. Grid/7×7 Tot. Grid w/AA
TD Snap, 7×7 Voc. Grid/ 8×8 Tot. Grid w/AA

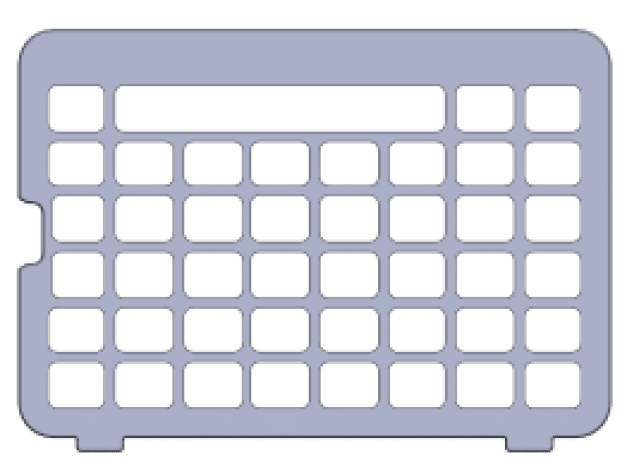

TD Snap, 7×9 Voc. Grid/ Tot. Grid w/AA
TD Snap, 6×6 Voc. Grid/ 7×7 Tot. Grid w/MW&TB
TD Snap, Express, 3×5 Voc. Grid 4×6 Tot. Grid w/AA
Text Keyboard
TD Snap, Text Keyboard, 7×10/8×11 w/AA
TD Snap, Text Keyboard, DE, 7×10/8×11 w/AA
Motor Plan 30
TD Snap, MP30, 5×5 Round Voc. Grid (6×6 w/AA)
TD Snap, MP30, 5×5 Voc. Grid (6×6 w/MW&TB)
TD Snap MP30, 5×5 Voc. Grid (6X6 w/AA)
Motor Plan 40
TD Snap, MP40, 5×7 Round Voc. Grid/6×8 Tot. Grid w/AA
TD Snap, MP40, 5×7 Voc. Grid/6×8 Tot. Grid w/MW&TB
TD Snap, MP40, 5×7 Voc. Grid/6×8 Tot. Grid w/AA
Motor Plan 66
TD Snap, MP66 (6×10, 7×11 AA)
TD Snap, MP66 (6×10, 7×11 w/MW&TB)
Aphasia
TD Snap Aphasia, 4×3/5×4 w/AA
TD Snap, Aphasia, 6×5/7×6 w/AA
PODD
TD Snap, PODD 15, w/Menu Access
TD Snap, PODD 60, w/Menu Access
Round
TD Snap, 2×3 Round, w/Menu Access

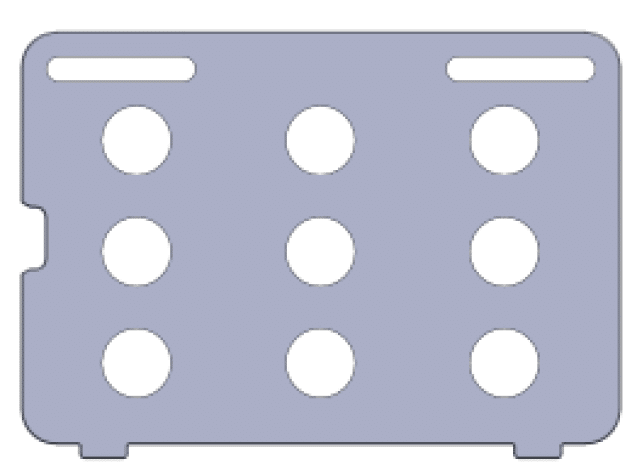

TD Snap, 3×3 Round, Grid Only w/Menu Access
TD Snap, 3×3 Round, w/AA, 4×4 Tot. Grid
TD Snap, 3×4 Round, w/AA, 4×5 Tot. Grid
TD Snap, 4×4 Round, w/AA, 5×5 Tot. Grid
TD Snap, MP30, 5×5 Round Voc. Grid (6×6 w/AA)
TD Snap, MP40, 5×7 Round Voc. Grid/6×8 Tot. Grid w/AA
TD Snap, MP66 Round (6×10, 7×11 AA)
TD Snap, Express, 3×5 Round Voc. Grid 4×6 Tot. Grid w/AA
TD Snap Express
TD Snap, Express, 3×5 Voc. Grid 4×6 Tot. Grid w/AA
TD Snap, Express, 3×5 Voc. Grid 4×6 Tot. Grid w/MW&TB
TD Snap, Express, 3×5 Round Voc. Grid 4×6 Tot. Grid w/AA
